3D Scanning for Architecture: From Heritage Preservation to BIM Workflows

An architect walks a 1920s Victorian mansion slated for adaptive reuse. She's hand-measuring crown molding profiles, coffered ceilings, walls that left orthogonal alignment sometime during the Hoover administration. By Friday she'll have 60 pages of field notes, and her CAD team will misinterpret roughly half of them. The wall that reads "8'-3 7/8" actually steps down to 8'-2 1/2" near the bay window. Nobody catches it until the millwork shop is already cutting.

This is the problem 3d scanning architecture exists to solve. Construction teams spend 35% of their time on non-optimal activities including rework from bad data, and bad data cost U.S. construction an estimated $31.3 billion in 2018, according to FMI/PlanGrid's Construction Disconnected report. Most of that loss traces back to the same root: dimensions captured with tape measures and assumed to be true.

The choice between mobile LiDAR and survey-grade terrestrial laser scanning (TLS) is not philosophical. It's a function of project scale, tolerance contracts demand, and what your CAD team will actually do with the data. The sections below break down the field-time math, the accuracy standards your scope will be benchmarked against, the integration pathway into Revit and SketchUp, and the pitfalls that turn a clean scan into a billing dispute.

---

Table of Contents

• The Real Cost of Hand-Measurement in Architectural Practice
• Choosing a Capture Mode — Mesh, Point Cloud, Pose+Video, or MultiCam
• Accuracy Standards — USIBD LOA, Point Spacing, and What Tolerance Your Project Actually Needs
• Scan-to-BIM Integration — Getting Point Clouds into Revit Without Breaking the Project
• Heritage and Historic Preservation — Capturing Geometry That 2D Plans Lose
• Mobile LiDAR vs. Professional Laser Scanning vs. Photogrammetry
• Field Pitfalls and Their Fixes

---

The Real Cost of Hand-Measurement in Architectural Practice

Start with the time math, because that's where the business case lives. The U.S. General Services Administration reports that 3D imaging reduces field time by 50–70% compared to traditional hand-measurement on complex federal buildings, with delivered accuracy in the 3–6mm range suitable for BIM (GSA, BIM Guide Series 05 – 3D Imaging, 2012). Translate that to a job you know: a 5,000 sq ft mixed-use building that takes 40 hours to hand-measure can be captured in 8–12 hours with a terrestrial laser scanner, or 1–2 hours with mobile LiDAR for a renovation-grade survey. The "two-week field phase" line item on your fee schedule becomes an afternoon plus a coffee.

Then there's drift error. A chained tape measure typically accumulates ±10–20mm of error across a 20m run. Every offset, every "hold this end for me," every misread eighth-inch compounds. Compare that against Historic England's finding that 3D laser scanning achieves positional accuracies of a few millimetres for the same job (Historic England, 3D Laser Scanning for Heritage, 2018). The difference between ±15mm and ±3mm is the difference between a coordination meeting and a change order.

The downstream effect shows up in RFIs and change orders. A McGraw Hill Construction survey found 43% of contractors on BIM projects reported fewer RFIs, and 37% reported fewer change orders versus non-BIM projects (Dodge Data & Analytics, The Business Value of BIM in North America, 2012). The mechanism is simple: scan-derived models surface non-plumb walls, sagging ceilings, and hidden structural conditions before construction documents are issued. Ductwork that assumed a 9'-0" clear ceiling but actual scan reveals 8'-7.5" with a sagging beam in the run — that's a problem you solve at the desk for $0 instead of in the field for $14,000.

The biggest cost of measurement failure isn't the tool — it's the site revisit. 3D scanning collapses a week of fieldwork into an afternoon.

The single-source-of-truth benefit compounds. When structural, MEP, and interior teams all reference one point cloud, the conflicting-2D-drawings problem disappears. Architectural says the ceiling is at 109", structural shows 108", and mechanical sized their duct around 110" — that scenario doesn't survive when everyone has a millimeter-accurate scan loaded as the reference layer in Revit. Each discipline aligns to the same reality.

The revision economy is the least-discussed payoff. When a client asks "can we move that wall north four feet?" three weeks into design development, a CAD team with a scanned model answers in hours. Without the scan, it's a return site visit, a half-day of remeasuring adjacent conditions, and a delivery delay you absorb. Multiply that across a year of practice and the math gets uncomfortable.

---

Choosing a Capture Mode — Mesh, Point Cloud, Pose+Video, or MultiCam

The capture mode determines what your CAD team can do with the file. Picking the wrong one wastes storage and processing time without adding dimensional value. Below is the mode-to-output map for an iPhone LiDAR workflow, with precision figures from peer-reviewed mobile LiDAR research.

Mobile LiDAR precision figures from Mader et al., ISPRS Annals V-2-2021, and Khoshelham et al., ISPRS Archives XLIII-B2-2021. File-size guidance informed by Historic England, 3D Laser Scanning for Heritage (2018), which reports textured meshes at 5–10 GB and point clouds at 1–2 GB for a detailed interior.

When mesh export is overkill. For dimensional work — structural survey, area takeoff, scan-to-BIM modeling — textured OBJ adds file bloat without value. The textures look impressive in a client meeting but they cost gigabytes and slow workstation render passes. Point cloud PLY or E57 is faster to import, lighter on workstations, and gives you exactly what you need: x, y, z coordinates with optional color.

When pose data matters. Researchers building neural radiance field (NeRF) reconstruction pipelines or SLAM systems need frame-accurate camera trajectories. Architects don't — unless you're generating volumetric VR walkthroughs for client review. If a developer wants to "walk through" a proposed renovation in a headset before construction, Pose+Video output drives that pipeline. For straight as-built work, skip it.

When MultiCam saves a day. Two operators with synchronized iPhones can cover a 10,000 sq ft commercial floor in roughly 4 hours instead of 8. The fused output stitches both capture sessions into a single coordinate frame. For a tenant fit-out under deadline pressure, this is the difference between billing the survey on Friday and billing it Monday.

Format-to-software cheat sheet. OBJ and USDZ import to most modern BIM tools as reference geometry. E57 is the GSA-recommended exchange format for point clouds — when in doubt, export E57. PLY works for lightweight intermediate workflows. Avoid proprietary or app-specific formats unless your CAD team has confirmed the conversion bridge.

---

Accuracy Standards — USIBD LOA, Point Spacing, and What Tolerance Your Project Actually Needs

Tolerance is a contractual variable, not a tool spec. The U.S. Institute of Building Documentation's Level of Accuracy (LOA) framework gives architects a defensible vocabulary for scoping scan deliverables. Use it in proposals; it eliminates the "but I thought we'd get millimeter accuracy" conversation six weeks into design.

Source: USIBD, Level of Accuracy Specification Version 3 (2020).

John Russo, AIA, President of USIBD, frames the scan-versus-model distinction directly: "Point clouds do not replace modeling; they improve it. The model still has to be created, but now it's based on reality rather than assumptions" (Russo, USIBD white paper, 2016). The practical implication for scope writing: specify LOA explicitly in scan-to-BIM contracts. "We will deliver an as-built BIM model at LOA20, derived from a point cloud captured at LOA30" is a defensible scope. "We will deliver an accurate model" is not.

Point spacing is the other half of the spec. Historic England recommends 4–10mm point spacing at object for ornate interiors with overall accuracy 2–6mm for conservation planning. That density is what makes ornament replication possible — but it also generates the multi-gigabyte files that overwhelm typical workstations. For massing studies, 50mm spacing is plenty.

Mobile LiDAR has an honest accuracy ceiling. Dr. Koert Khoshelham at the University of Melbourne, who has tested iPhone LiDAR extensively for indoor mapping, puts it plainly: "The LiDAR sensor in the iPhone 12 Pro provides centimetre-level accuracy at short range, which is sufficient for many indoor mapping applications but falls short of survey-grade standards" (Khoshelham et al., ISPRS Archives XLIII-B2-2021). Translated to LOA: mobile LiDAR lands comfortably in LOA10–LOA20, occasionally LOA30 with careful technique, registration overlap, and scanning markers and control points. It does not reach LOA40 or above.

The defensible benchmark when accuracy is challenged on a deliverable is ASTM E3125-17, which defines test methods for evaluating 3D imaging systems. If a contractor disputes whether your point cloud meets the contracted LOA, ASTM E3125 is the standard a third-party evaluator will reference.

---

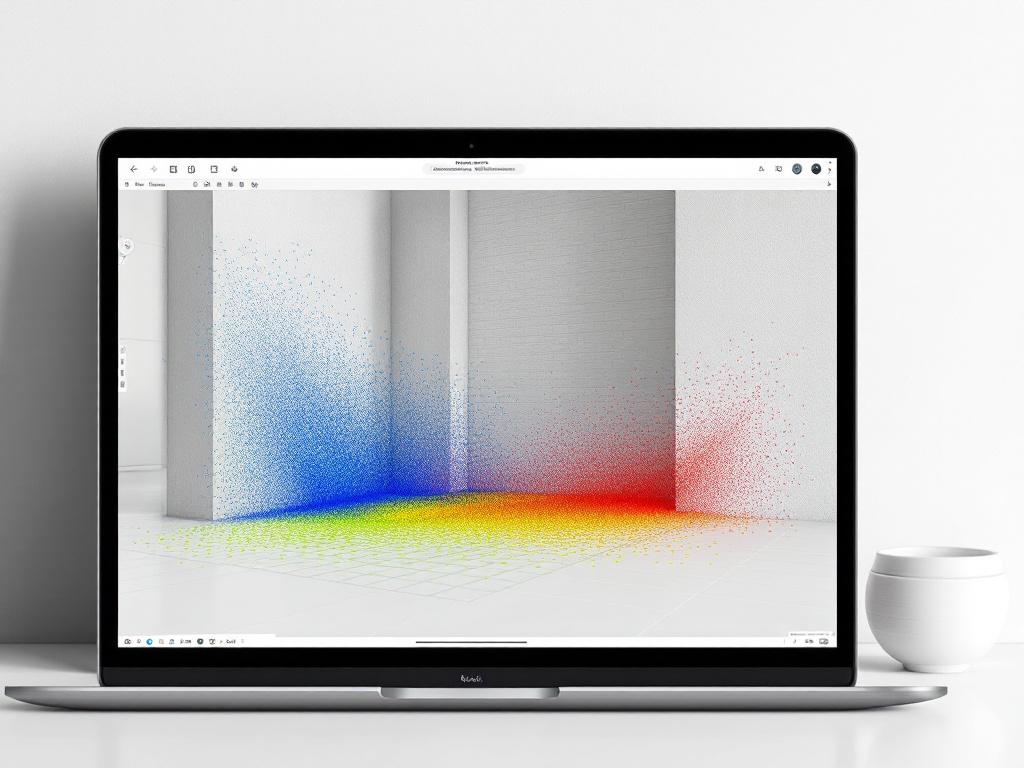

Scan-to-BIM Integration — Getting Point Clouds into Revit Without Breaking the Project

The scan is the easy part. The integration into a working BIM environment is where projects stall, files corrupt, and CAD teams lose hours. The six steps below are the workflow that prevents the most common failure modes.

1. Export in a BIM-native exchange format. The GSA specifies E57, LAS, or XYZ as preferred point cloud formats for federal BIM work. E57 preserves color and intensity attributes; LAS is the industry standard for aerial and large-volume work; XYZ is the lowest-common-denominator ASCII format and works everywhere but loses metadata. For mesh exchange, OBJ with MTL textures and USDZ (Apple's universal scene format) import cleanly into Revit via FBX/OBJ converters, into SketchUp natively, and into ArchiCAD via the GDL converter. Avoid proprietary single-vendor formats unless your CAD team has confirmed the bridge.

2. Decimate before import. Full-resolution scans of a single room can produce hundreds of millions of points, as HandsOnMetrology documents in its portable scanning case studies. Revit and Navisworks handle that density poorly — UI lag, snap latency, and crashes are typical. Decimate to 5–10mm point spacing for general modeling work; reserve full-density layers for ornament reference, called up only when needed. CloudCompare and Autodesk ReCap both handle decimation cleanly.

3. Validate scale against a known dimension. Before any modeling begins, measure one real-world feature on site — a door width, a window opening, a stair tread — and verify it in CAD after import. This catches unit-mismatch errors (1:100 vs 1:1, meters vs millimeters) immediately. A scan imported at 1/100 scale will look correct in plan view and produce a building that's 110 feet too small. Catch it on day one.

4. Set the coordinate system before modeling. Lock the scan to project north and a survey datum at import. Re-georeferencing after walls are modeled is a multi-day undo — every family, every dimension, every section view shifts. Spend ten minutes establishing the coordinate frame and save yourself the rework.

5. Treat the scan as background, not geometry. Don't snap parametric Revit families to noisy point cloud surfaces. The points are dimensional reference, not modeling geometry. Model clean walls on top of the scan, using it as the truth layer. This is Russo's "measurement instrument, not finished BIM" principle in practice — the scan informs the model; it doesn't become the model.

6. Budget realistic scan-to-BIM modeling time. The GSA reports modeling time from point clouds runs 1–3 hours of office work per hour of scanning, depending on required LOD. A 4-hour scan job is a 4–12-hour modeling job. Quote accordingly. Underbid this once and you'll discover it on every subsequent project.

A point cloud is not a BIM model. It's the dimensional truth your BIM model gets built on top of.

The discipline of this workflow is what produces the 43% RFI reduction and 37% change-order reduction (Dodge Data, 2012) that the literature reports on BIM-supported projects. Scan, decimate, validate, georeference, model on top, document the LOA. Skip steps and you get an authoritative-looking model built on undetected systematic error.

---

Heritage and Historic Preservation — Capturing Geometry That 2D Plans Lose

Heritage work breaks hand-measurement faster than any other building type. Original blueprints are incomplete, lost, or dimensionally aspirational rather than accurate. Stone masonry, timber framing, and decorative plasterwork are non-orthogonal by nature — they resist tape and tri-square. Historic England documents that 3D scanning records complex interiors and exteriors within hours rather than days, especially for irregular historic fabric where tape-measure surveys are slow and error-prone.

The quantitative case from real heritage practice is clear. A 2025 study of Nepali heritage monuments reported terrestrial laser scanning captured millions of points per scan at 3–6mm accuracy, with 10–25 scan positions per monument and mean registration error under 5mm (Karki et al., ISPRS Archives XLVIII-M-9-2025). The authors note field survey was reduced "from weeks to days." For a conservation architect facing a deteriorating structure with no time for traditional documentation, that speed is the difference between recording the building and losing it undocumented.

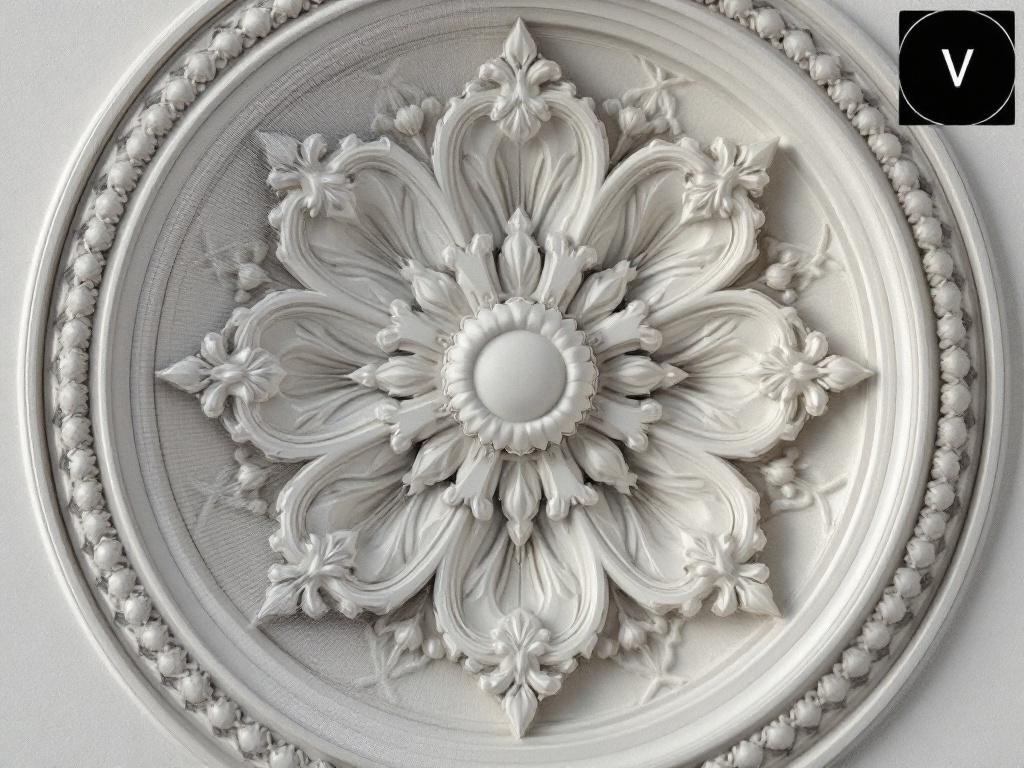

Ornament replication is where scanning earns its keep on heritage budgets. Conservation case studies from Factum Arte document sub-millimetre sampling driving CNC milling and 3D printing of missing decorative elements, achieving reproduction tolerances of ±1–2mm for complex plaster and stone ornament. Picture the working scenario: a 1920s theater renovation needs 47 identical ceiling rosettes replicated from a single surviving original. Scan that one rosette at LOA50, mill the CNC molds from the scan, and the missing 46 come out matching the survivor within ±2mm. Hand-carving would take a season and produce inconsistent results.

David Andrews, Geospatial Imaging Manager at Historic England, frames the institutional case: "Laser scanning can rapidly record surfaces that would take weeks to measure by hand," and the resulting 3D record "forms a baseline archive for future conservation, allowing interventions to be planned and justified" (Andrews, in Historic England, 2018, foreword). Read that second clause carefully. The scan isn't just for the current renovation. It's the dataset that future conservators will reference when planning the renovation after yours.

Ornamental detail isn't something you measure. It's something you capture — and the capture you make today is the archive that survives the building.

Adam Lowe, Director of Factum Foundation, extends the argument: "Non-contact recording at sub-millimetre resolution allows us to create facsimiles, monitor change over time and make fragile originals accessible through digital surrogates." The Notre-Dame de Paris case made this point at scale — Andrew Tallon's pre-fire laser scans of the cathedral are now active reference data guiding reconstruction. The scan you take today is the recovery dataset when the building burns, floods, or settles tomorrow. There is no compelling argument against capturing dense geometry of any structure with cultural value, regardless of current intervention plans.

The honest limitation: mobile LiDAR's heritage ceiling is real. Mader et al. (ISPRS Annals V-2-2021) caution that mobile LiDAR smooths or loses decorative elements under 2–3cm relief and degrades on reflective or dark surfaces, making it "unsuitable for high-fidelity heritage recording" where sub-millimetre detail is critical. For a baseline survey of an ornate ceiling — establishing room dimensions, ceiling heights, beam positions — mobile LiDAR works at LOA20. For replicating that ceiling's rosettes, you need TLS, photogrammetry, or a hybrid workflow with metrology-grade equipment. The right approach is to use the right tool at each tier of detail: mobile for the room-scale geometry, photogrammetry or close-range TLS for the ornament that matters.

---

Mobile LiDAR vs. Professional Laser Scanning vs. Photogrammetry — Tool Selection by Project Scale

The tool decision should track the contractual tolerance, not the budget you've allocated to hardware. Below is a side-by-side of the three capture methods architects routinely choose between.

Mobile LiDAR accuracy from Mader et al., ISPRS Annals V-2-2021, and Khoshelham et al., ISPRS Archives XLIII-B2-2021. TLS specs from Leica Geosystems RTC360 product page and FARO Focus Premium technical data — both vendor sources. Photogrammetry benchmarks from Remondino et al., ISPRS Archives XL-5/W1 (2013).

The decision rule is mechanical. If your project fits a smartphone frame and centimeter precision suffices — most renovation, space planning, retail tenant fit-outs, residential remodels — mobile LiDAR collapses a week of fieldwork into an afternoon. If you're surveying a 50,000 sq ft factory, monitoring structural deformation over time, or contractually specifying LOA40 deliverables, hire a TLS service or own the hardware.

The cost-per-precision curve is steep. Mobile LiDAR is about $1,000 total entry cost for centimeter-level work (an iPhone 12 Pro or newer plus a free or low-cost app). TLS is $50k–150k for millimeter-level work, with training and processing overhead on top. Between them sits a roughly 50–100× cost gap with a roughly 10× accuracy gap. Most architectural work — including renovation, space planning, and conservation triage — does not need the right side of that curve. The architects who buy survey-grade TLS hardware are running TLS as a service line, not as a project tool.

Photogrammetry's place. Best for facades, large exteriors, and ground-to-roof capture where line-of-sight from a single position can't cover the structure. Slower processing (hours of compute for a building exterior), weather-sensitive, but accessible — Metashape, RealityCapture, and open-source pipelines are mature and well-documented. In practice, photogrammetry pairs with TLS or mobile LiDAR rather than replacing either. Fabio Remondino at Bruno Kessler Foundation argues integrated TLS + photogrammetry workflows are often ideal for heritage; for general practice, mobile LiDAR plus smartphone photogrammetry for color and texture fill covers roughly 80% of needs.

Where professional metrology-grade systems like GOM sit. Above survey-grade TLS, in the LOA50 territory, are structured-light metrology systems used for fabrication, reverse engineering, and quality control. These rarely show up in architectural practice except when a project requires replicating an ornament to fabrication tolerance — and even then, the metrology scan is typically a sub-contracted service rather than in-house hardware.

The goal isn't millimeter perfection. It's dimensional truth faster than a tape measure — and mobile LiDAR delivers that at one percent the cost of survey-grade hardware.

A free iPhone LiDAR app with Mesh, Point Cloud, Pose+Video, and MultiCam outputs covers everything from a townhouse renovation to a small commercial fit-out at zero hardware cost beyond an iPhone 12 Pro or newer. That's the case for keeping a capture device in every architect's pocket, regardless of whether the practice also owns or rents TLS hardware for higher-tolerance work.

---

Field Pitfalls and Their Fixes — A Working Architect's Troubleshooting Reference

The failures below are the ones that turn a clean capture session into a billing dispute or a project delay. Each is paired with the corrective practice that prevents it.

• File size bloat from textured meshes. Historic England documents textured meshes of a single interior reaching 5–10 GB, compared with 1–2 GB for the equivalent colored point cloud. This crashes older CAD workstations and slows render review to a crawl. Fix: Export geometry-only OBJ for CAD coordination; keep the textured version as a separate visualization asset on a different drive or layer. Use point cloud E57 or PLY for any dimensional work — the texture data is not what your structural engineer needs.
• Point cloud drift between sweeps. Multi-room scans accumulate registration error, especially in low-light corridors or repetitive geometry like long hallways where SLAM loses its anchor features. The Nepal heritage case studies tolerated mean registration error under 5mm by using deliberate overlap zones and physical target placement. Fix: Plan overlap zones of 20–30% between scan positions; place reference targets at corridor intersections; re-scan immediately if registration error exceeds your contracted LOA tolerance. Discover drift on site, not at the desk three days later.
• Non-orthogonal walls breaking BIM families. Real buildings have unplumb walls, out-of-square corners, sagging ceilings, and floors that pitch a half-inch toward the drain. Forcing scan geometry into parametric Revit walls produces dimensional lies that propagate through every section view. Fix: Use the scan as a background reference layer; model clean geometry on top; document deviations explicitly as as-built notes for the construction team. The model represents design intent; the scan represents reality; the as-built notes bridge the two.
• Scale and unit mismatch on import. Forgetting to set real-world units in the capture app produces models that import at 1:100, 1:1000, or in inches instead of millimeters. The error is silent in plan view and devastating in section. Fix: Always measure one known dimension — door height, window width, a marked tape on the floor — on site during the scan. Verify it in CAD post-import before any modeling begins. Rescale at the import stage, not after walls are drawn.
• Missing data on reflective and dark surfaces. Mobile LiDAR and laser scanners both lose signal on glass, polished concrete, black carpet, dark paint, and mirrors. Mader et al. and HandsOnMetrology both flag this as a chronic field issue. Fix: Supplement with photographs at known scale; use photogrammetry for problem surfaces and fuse with the point cloud; or temporarily apply matte spray to reflective targets where conservation rules permit. Plan for the gap — don't discover it during scan-to-BIM modeling.
• Unverified scans containing systematic error. The GSA warns that "unverified scans can contain systematic errors" and recommends independent check-measurements as standard practice. A scan that looks authoritative on screen can be off by 30mm across a 15m run if the device was miscalibrated. Fix: Take three or four independent tape or laser-distance measurements on site at known features. Validate them against the imported model. Document the check in the scan deliverable package — this is your defensible record if accuracy is challenged.
• Non-watertight meshes failing fabrication. Scans intended for CNC milling or 3D printing of replicated elements must be manifold — closed, no holes, no self-intersecting faces. Raw scan meshes almost never meet that bar straight out of the capture app. Fix: Import into Meshmixer, CloudCompare, or Blender; close holes; remove duplicate vertices; validate manifold geometry with the software's analysis tools; re-export STL or OBJ before sending to the fab shop. A non-manifold STL is a wasted day at the CNC operator's bench.
